Automated Steering System for Tractors | Agriculture Autopilot
The Auto Steering Tractor System (Roof Control Edition) is a new tool for hands-free farming. It combines strong RTK positioning, a powerful onboard computer, and a strong electric motor to help tractors drive by themselves. Built to work well in tough farm conditions and with different tractors, this system is easy to set up and use. Using a simple Android tablet, weatherproof parts, and support for one or two antennas, this Autopilot Driving System makes modern farming easier and more effective.
Technical Specifications
On-Board Computer (10-inch Android Tablet)
- Display Size: 10.1 inches
- Resolution: 1024 × 600
- Operating System: Android 9
- Processor (SoC): Qualcomm Octa-Core 8953
- Memory: 2GB RAM + 16GB ROM
- Audio: Built-in speaker
Automated Steering System for Tractors | Agriculture Autopilot
The Auto Steering Tractor System (Roof Control Edition) is a new tool for hands-free farming. It combines strong RTK positioning, a powerful onboard computer, and a strong electric motor to help tractors drive by themselves. Built to work well in tough farm conditions and with different tractors, this system is easy to set up and use. Using a simple Android tablet, weatherproof parts, and support for one or two antennas, this Autopilot Driving System makes modern farming easier and more effective.
Technical Specifications
On-Board Computer (10-inch Android Tablet)
- Display Size: 10.1 inches
- Resolution: 1024 × 600
- Operating System: Android 9
- Processor (SoC): Qualcomm Octa-Core 8953
- Memory: 2GB RAM + 16GB ROM
- Audio: Built-in speaker
More Technical Specifications
On-Board Computer (10-inch Android Tablet)
- Data Transmission Interface: 1 channel supported
- Satellite Dish Interface: Supports 1-2 channels
- Protection Level: IP65 (Dustproof and water-resistant)
- Dimensions: 280 × 180 × 50 mm
- Connectivity:
- WiFi: IEEE 802.11b/g/n
- 4G LTE:
- LTE-FDD: B1/B3/B5/B8
- LTE-TDD: B34/B38/B39/B40/B41
- Bluetooth: SPP, BLE
- SIM Card Support: Yes
Steering Motor
- Rated Output Power: 100W
- Rated Input Voltage: 12V DC
- Rated Current: 12.5A
- Rated Torque: 4.5 Nm
- Maximum Torque: 9 Nm
- Rated Speed: 100 RPM
- Maximum Speed: 125 RPM
RTK Positioning System
- Positioning Type: Full system, full frequency, supports both single and dual antennas
- Directional Accuracy: 0.2° per 1-meter baseline
- Speed Accuracy: 0.03 m/s
- Time Accuracy: 10 ns
- RTK Initialization Time: Less than 5 seconds (typical)
- Operating Temperature: -40℃ to +85℃
- Operating Voltage: 9V – 16V DC
- Maximum Working Current: 2.5A
- Supported Satellite Systems & Frequencies:
- BDS: B1I/B2I/B3I/BI1C/B2a/B2b*
- GPS: L1 C/A, L2P(Y), L2C, L5
- BDS: B1I/B2I/B3I/BI1C/B2a/B2b*
- Galileo: E1, E5a, E5b
- GLONASS: L1, L2
- QZSS: L1, L2, L5
- RTK Accuracy:
- Plane: ±0.8 cm + 1 ppm
- Elevation: ±1.5 cm + 1 ppm
Product Features
Complete Hardware Integration for Autonomous Driving

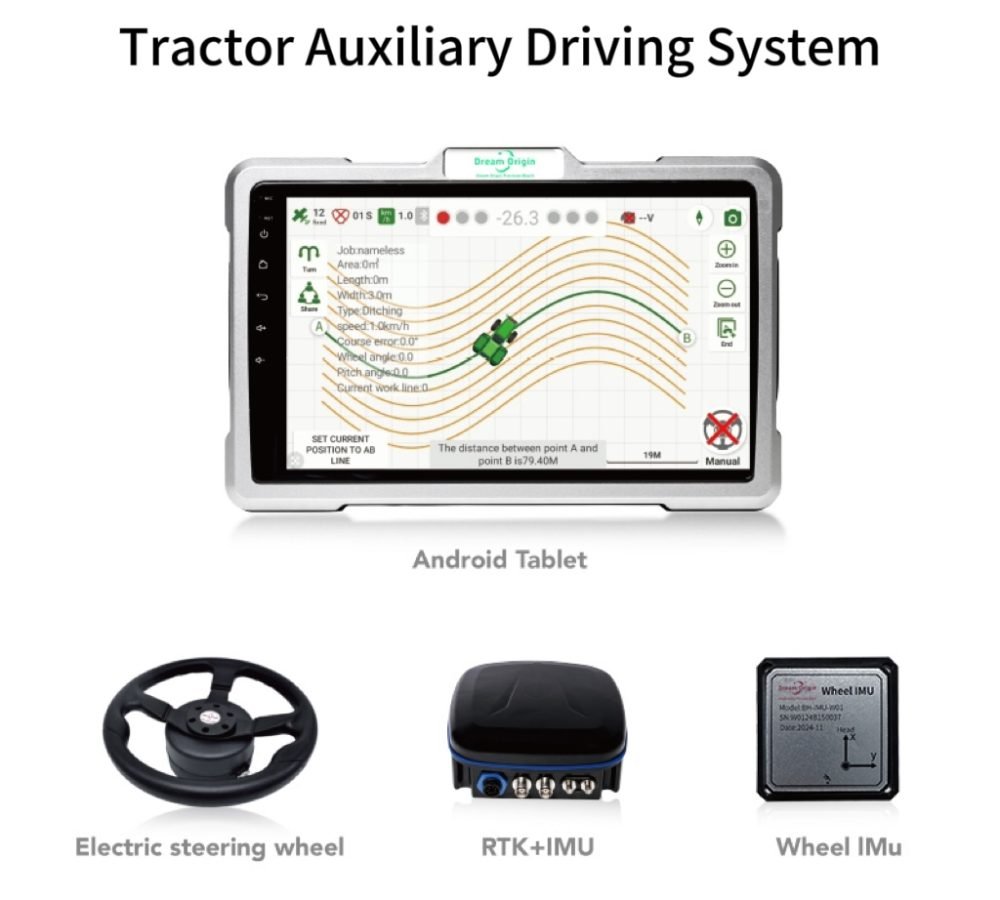

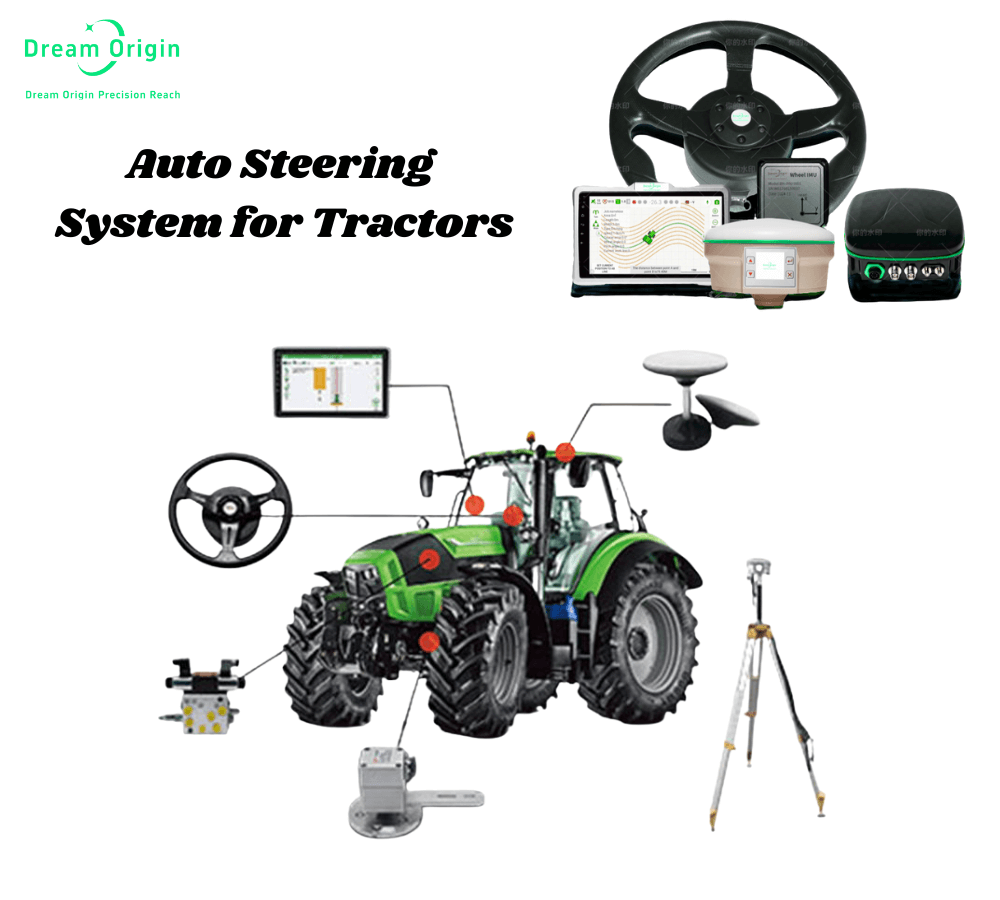

The system comes with everything needed for self-driving: a 10.1-inch Android 9 tablet (IP65-rated), a Qualcomm octa-core processor, a 100W power steering motor (9Nm max torque), RTK antennas, a gyroscope, a front wheel angle sensor, power cables, and mounting parts. It supports both single and dual antenna setups and includes optional tools like a handle and a portable base station for flexible use.
Advanced RTK Precision and Multi-Satellite Support
The power steering system works with satellites such as GPS, GNSS, BDS, Galileo, GLONASS, and QZSS, offering high-accuracy positioning with precision as precise as 0.8 cm horizontally and 1.5 cm in height. It only takes about 5 seconds to set up RTK. The direction accuracy is 0.2° per 1 meter, which is great for drawing straight lines, following curves, and making smooth turns in the field.
Quick Installation and Calibration Process
Setting up the auto steering wheel system is simple, with easy steps to install the steering motor, tablet, antennas, gyroscope, and angle sensor. You can attach them with glue or screws. Built-in markers help you place everything correctly. The system automatically adjusts to your vehicle size, antenna location, and sensors- with step-by-step help from the software.
Rugged, Field-Ready Build Quality
Designed for outdoor farm work, the onboard computer, antennas, and other parts are all IP65-rated, which means they’re protected from dust and water. It works well in extreme temperatures from -40℃ to 85℃. It runs on 9-16VDC and uses up to 2.5A, staying stable even in tough field conditions.
Multiple Work Line Modes & Automated Turns
You can choose from many line patterns like AB Line, A+ Line, curved lines, circles, nesting, diagonal raking, and shared jobs. With Auto-U-Turn, the automatic steering wheel tractor can turn by itself at the edges of the field. It also supports cross-line operations for working in straight lines across the field, helping you finish your work quickly.
Smart Software and Connectivity
The built-in Android 9 tablet has a 1024x600 screen, 2GB RAM, and 16GB storage. It connects through WiFi, 4G LTE, and Bluetooth (SPP, BLE), and supports a SIM card. The software helps with setup, antenna settings, farm tool setup, and RTK mode options like LoRa and NTRIP for both local and network use. You can update the software and firmware easily through the website.
Compatibility
Vehicle Types:
- Supports a wide range of tractors and self-propelled agricultural machinery
Installation Flexibility:
- Compatible with single and dual antenna setups
- Adjustable auto steering wheel sleeves and mounts
- The gyroscope fits under the seat or floor on the central axis
Antenna & Sensor:
- Supports digital transmission antennas (single/dual RTK)
- Compatible with front wheel and mechanical angle sensors
- Auto-calibration enabled
Connectivity:
- LoRa differential and NTRIP network RTK supported
- Firmware and app updates via WiFi or 4G
Farm Tool Integration:
- Configurable for various implement types, job widths, and steering settings
Environmental Suitability:
- Operates in -40℃ to +85℃
- Waterproof & dustproof (IP65 rating)
Use Cases
- Autonomous navigation for precision farming operations
- Straight-line and curved path tracking for seeding and fertilizing
- Automatic U-turns at field boundaries
- Cross-path driving for perpendicular row entry
- Shared job execution across multiple tractors
- Drive in circles and nested paths for uneven-shaped fields
- Hands-free auto steer for tractor to reduce driver fatigue
- High-accuracy RTK positioning for all-terrain work

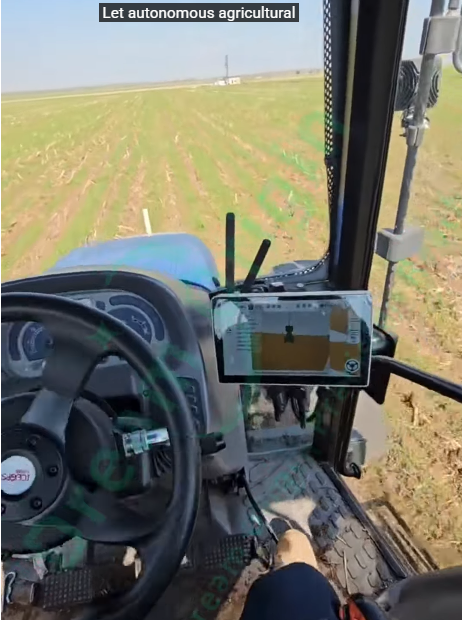

- Real-time monitoring via Android tablet interface
- Smart farming automation with sensor-based controls
- Terrain-following adjustments in hilly or uneven fields
- Autonomous driving for harvesting and crop spraying
Automated Steering System for Tractors Pros & Cons
Product Pros
- The system delivers centimeter-level accuracy with ±0.8 cm plane and ±1.5 cm elevation precision. This reduces overlap and skips in the field, improving crop coverage and cutting input waste.
- It locks RTK signals in under 5 seconds, so you can start working right away without long setup delays.
- The 10.1" Android tablet runs smoothly with a Qualcomm octa-core processor. It includes built-in 4G, WiFi, Bluetooth, and a speaker, so you stay connected in the field.
- Its 100W steering motor offers up to 9Nm torque, giving you strong, stable steering even on tough terrain.
- Installation is simple and supports both single and dual antenna setups. Step-by-step guidance makes it easy, even without technical skills.
- You can work in straight lines, curves, circles, diagonal paths, and more. It also supports auto U-turns and cross-line tasks to boost efficiency.

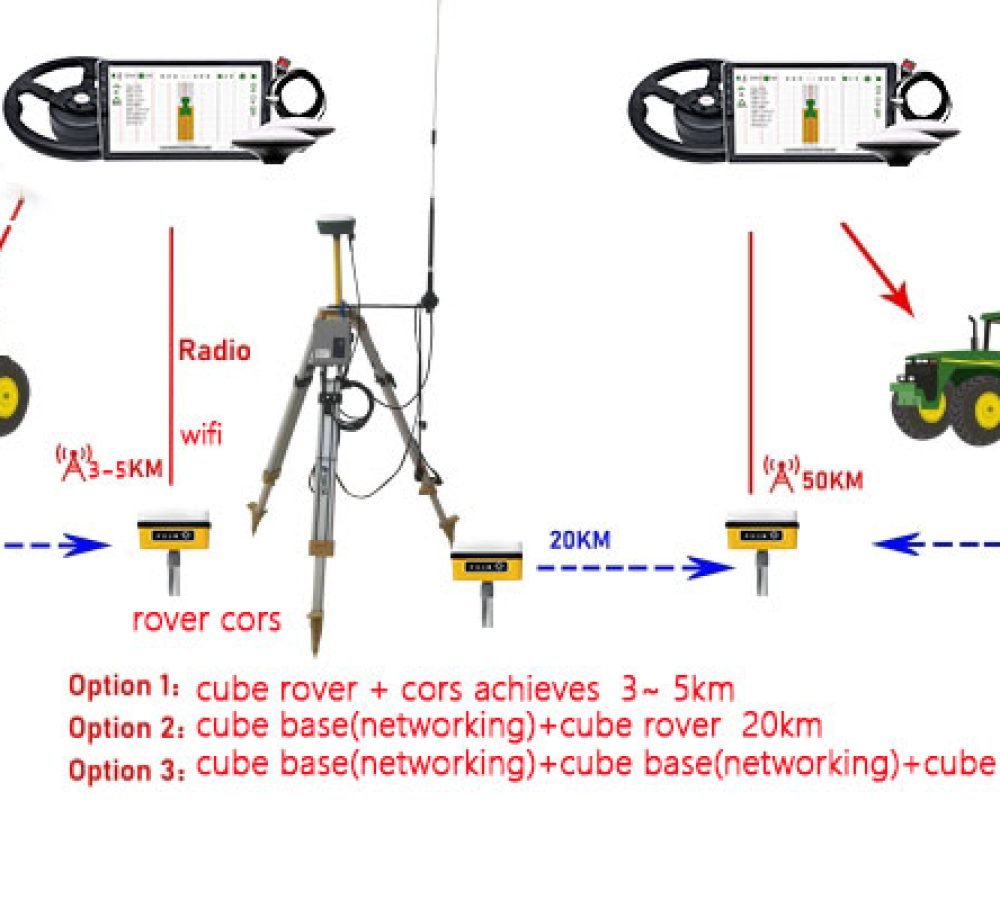

- With a portable or network-based station, it works across 30-50 km, and is perfect for large farms.
- It handles extreme temperatures from -40℃ to +85℃ and resists shocks and water, so it’s reliable year-round.
- Built-in tools help with auto calibration, vehicle setup, and sensor tuning, so you get top performance without guesswork.
